80CRI 90CRI Linear LED High Bay Lights 3000K 3500K 4000K 5000K

Product Details

Place of Origin: China

Brand Name: JXLUX

Payment & Shipping Terms

Price: negotiable

Packaging Details: carton box

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Chat Now

Specifications

Description

Specifications

Highlight:
                                                                                    90CRI Linear LED High Bay Lights, Linear LED High Bay Lights 3000K, 5000K linear high bay lights


Description

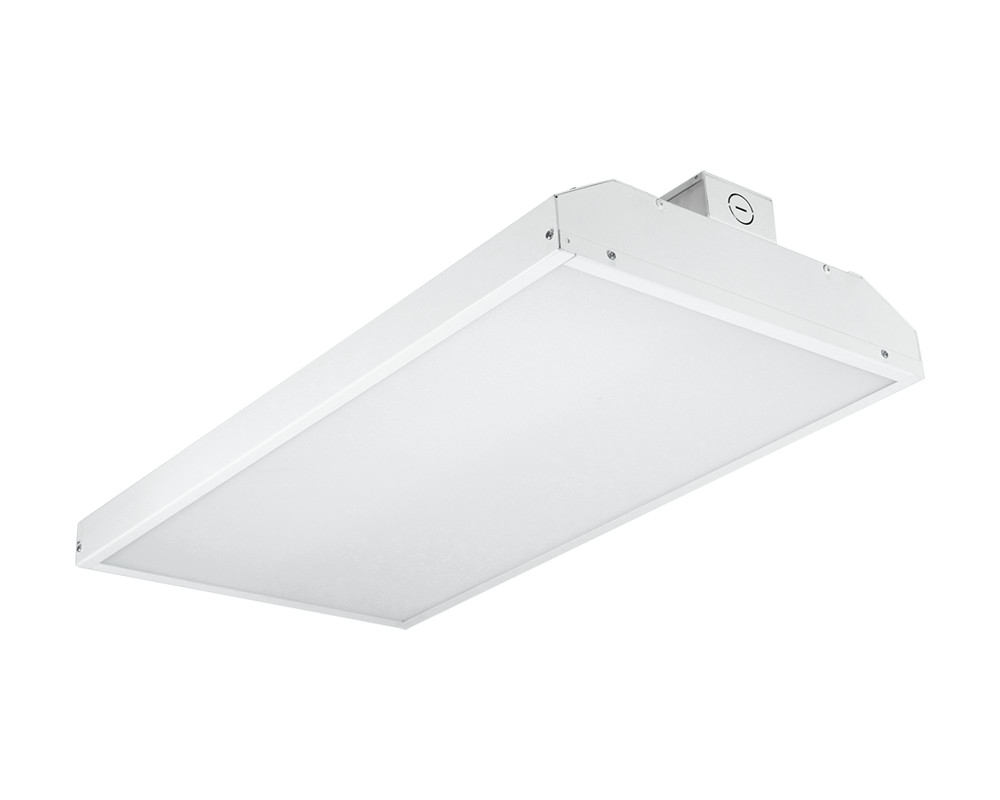

80CRI 90CRI Linear LED High Bay Lights 3000K 3500K 4000K 5000K

Features:

1. Total luminaire efficacy as high as 120 LPW (lumens per Watt). Optional 130LPW.

2.Electrical : 50/60Hz,PF>0.9, THD<20%,Flicker free, Mains surge immunity:L-N 2KV,L-FG N-FG 4KV

3.0-10V, 10-100%,5%. Class 1 rated output. Consult Factory for other available drivers.

4.Available in different lumen to suit the needs of various applications.

Model parameter table and description

Code

Width

Length

Power

Lumens(lm)

CRI

Color temp.

Voltage

Driver

Options

Notes

S59-6032-85

320

602

85W

110L

11000

80CRI

3000K

UNV

universal

DIM

0-10V Dimming

Sensor

S59-12032-170

320

1162

170W

220L

22000

90CRI

3500K

120

120V

SDIM

Step dimming

Emergency

4000K

277

277V

DALI

5000K

347

347V

POE

Power over ethernet

Tunable White

Tunable Power

Packages

Code

Pcs

Width(mm)

Length(mm)

Height(mm)

Weight(KG)

Volume(CBM)

NOTES

S59-6032-85

330

620

210

8.5

0.043

S59-12032-170

330

1180

210

0.0818

Foototes: Accessories (order separately) 1. V-Hook 2. Wirerope

Options: 1. Motion Sensor 2. The emergency battery pack

Housing:

Die-formed, cold rolled steel.Metal housing provides excellent thermal transfer to extend component life.

Acrylic(PMMA) diffuser provides even illumination with comfortable appeal.

Electrical:

Fixtures are factory pre-wired and tested for all circuits. LED driver is accessible from above.

Warranty:

TM-21 predicted L70 lumen maintenance up to 50,000 hours. 5 years manufacturer's limited warranty.

Finish:

Highly reflective, matte powder coat white paint for high efficiency. Matte texture to diffuse glare and lamp image on the surface within the optical chamber exterior. Custom finishes are also available.

General Notes: All options are factory installed. All accessories are field installed.
