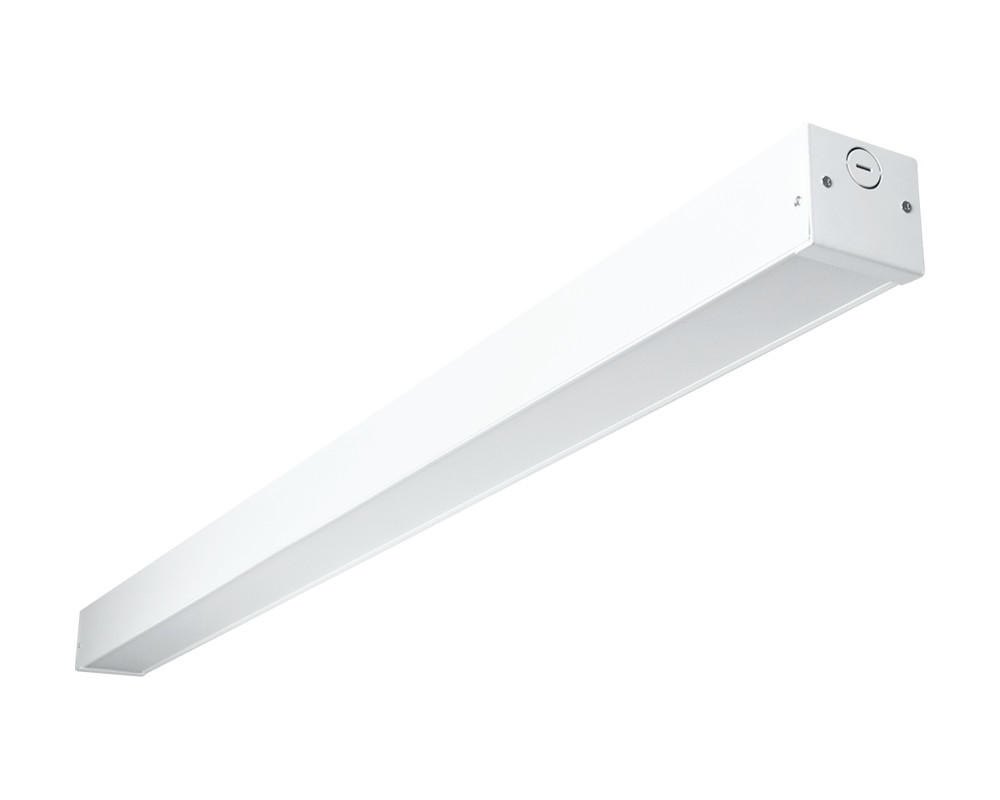

BATTEN LIGHT S32-7
Features:
1.Total luminaire efficacy as high as 120 LPW (lumens per Watt). Optional 130LPW. UGR<19
2.Electrical : 220-240V,50/60Hz,PF>0.9, THD<10%,Flicker free. Off State Power 0.5W, Mains surge immunity:L-N 1KV,L-FG N-FG 2KV
3.Available in different Length(<1838mm) and lumen to suit the needs of various applications. Optional color: Matte black, Silver, Customized
4.Optional driver: Lifud, Eaglerise etc. Consult Factory for other available drivers.
Model parameter table and description
|
Code
|
Width | Length | Power | Lumens(lm) | CRI | Color temp. | Driver | Options | Notes | ||||||
| S32-607-18 | 71 | 608 | 18W | 24L | 2400 | 8 | 80CRI | 30 | 3000K | DIM | 0-10V Dimming | Antimicrobial powder coat | Length will plus 30mm for Surface type | ||
| S32-907-24 | 71 | 908 | 24W | 32L | 3200 | 9 | 90CRI | 40 | 4000K | SDIM | Step dimming | ||||
| S32-1207-36 | 71 | 1208 | 36W | 47L | 4700 | 57 | 5700K | DALI | DALI | Sensor | |||||
| S32-1507-40 | 71 | 1508 | 40W | 52L | 5200 | TW | Tunable White | TP | Tunable Power | Emergency | |||||
| S32-1807-48 | 71 | 1808 | 48W | 63L | 6300 | ||||||||||
|
Code
|
Pcs | Width(mm) | Length(mm) | Height(mm) | Weight(KG) | Volume(CBM) | NOTES | ||||||||
| S32-607-18 | 10 | 140 | 650 | 370 | 11 | 0.0337 | |||||||||
| S32-907-24 | 6 | 140 | 950 | 230 | 9 | 0.0306 | |||||||||
| S32-1207-36 | 6 | 140 | 1250 | 230 | 11 | 0.0403 | |||||||||
| S32-1507-40 | 4 | 140 | 1550 | 160 | 9 | 0.0347 | |||||||||
| S32-1807-48 | 4 | 140 | 1850 | 160 | 11 | 0.0414 | |||||||||
Foototes: Accessories (order separately) 1. V-Hook 2. Wirerope
Options: 1. Motion Sensor 2. The emergency battery pack
Housing:
Die-formed, cold rolled steel.Metal housing provides excellent thermal transfer to extend component life.
Acrylic(PMMA) diffuser provides even illumination with comfortable appeal.
Electrical:
Fixtures are factory pre-wired and tested for all circuits. LED driver is accessible from above.
Warranty:
TM-21 predicted L70 lumen maintenance up to 50,000 hours. 5 years manufacturer's limited warranty.
Finish:
Highly reflective, matte powder coat white paint for high efficiency. Matte texture to diffuse glare and lamp image on the surface within the optical chamber exterior. Custom finishes are also available.
General Notes: All options are factory installed. All accessories are field installed.
