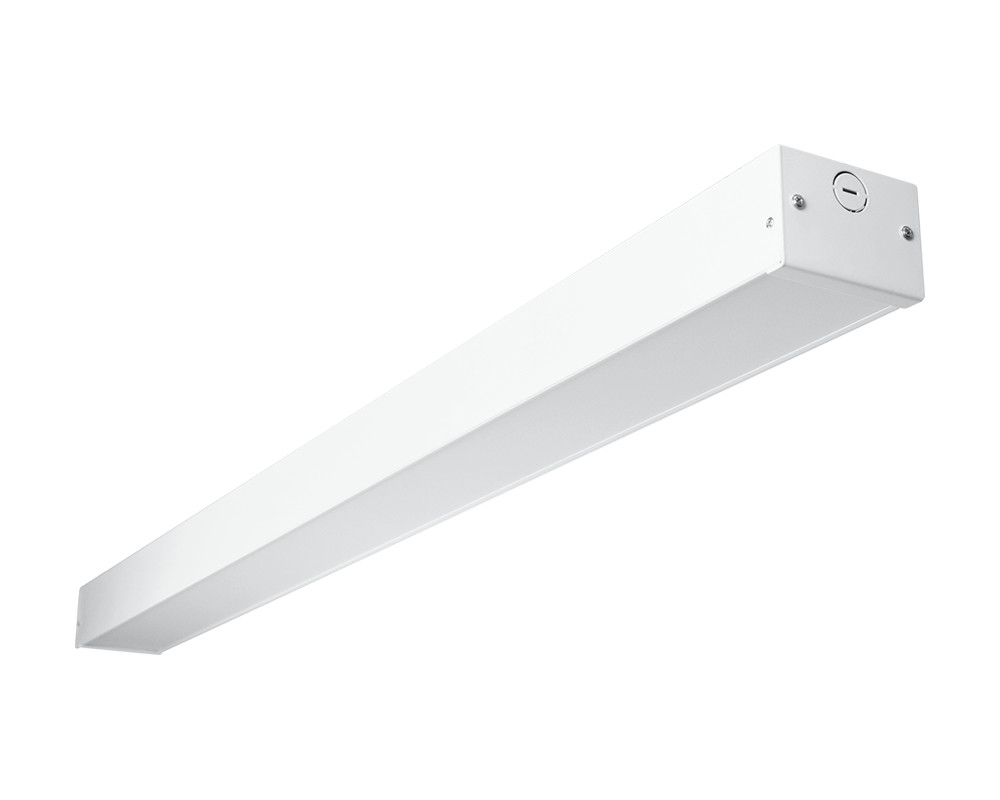

27W 36W 48W LED Batten Light Fitting 60W 68W 3000K 4000K 5700K

Product Details

Place of Origin: China

Brand Name: JXLUX

Payment & Shipping Terms

Price: negotiable

Packaging Details: carton box

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price
Contact Now
Specifications
Highlight:

48W LED Batten Light Fitting

,

36W LED Batten Light Fitting

,

5700K batten fitting

Description
27W 36W 48W LED Batten Light Fitting 60W 68W 3000K 4000K 5700K

BATTEN LIGHT S32-9



Product introduction



Start with familiar installation methods , add high-quality, energy saving LED technology.Utilizes highly reliable and efficient LED boards and driver.

Deliver exceptional uniformity and wide row spacing from continuous line-of light.Provides general lighting perfect for a wide variety of applications. It's a highly efficient and economical solution for any energy challenged lighting project.



Model parameter table and description





Code



Width Length Power Lumens(lm) CRI Color temp. Driver Options Notes
S32-609-27 91 608 27W 36L 3600 8 80CRI 30 3000K DIM 0-10VDimming Antimicrobial powdercoat Length will plus 30mm for Surface type
S32-909-36 91 908 36W 47L 4700 9 90CRI 40 4000K SDIM Step dimming Sensor
S32-1209-48 91 1208 48W 63L 6300     57 5700K DALI DALI
S32-1509-60 91 1508 60W 78L 7800     TW Tunable White TP TunablePower Emergency
S32-1809-68 91 1808 68W 88L 8800

Packages

Code Pcs Width(mm) Length(mm) Height(mm) Weight(KG) Volume(CBM) NOTES
S32-609-27 10 140 650 470 12 0.0428
S32-909-36 6 140 950 290 9.5 0.0386
S32-1209-48 4 140 1250 200 9 0.035
S32-1509-60 4 140 1550 200 10 0.0434
S32-1809-68 4 140 1850 200 11.5 0.0518



Foototes: Accessories (order separately) 1. V-Hook 2. Wirerope



Options: 1. Motion Sensor 2. The emergency battery pack



Housing:



Die-formed, cold rolled steel.Metal housing provides excellent thermal transfer to extend component life.

Acrylic(PMMA) diffuser provides even illumination with comfortable appeal.



Electrical:



Fixtures are factory pre-wired and tested for all circuits. LED driver is accessible from above.



Warranty:



TM-21 predicted L70 lumen maintenance up to 50,000 hours. 5 years manufacturer's limited warranty.



Finish:



Highly reflective, matte powder coat white paint for high efficiency. Matte texture to diffuse glare and lamp image on the surface within the optical chamber exterior. Custom finishes are also available.



General Notes: All options are factory installed. All accessories are field installed.
